Aluminium Cutting Machine

Product Description

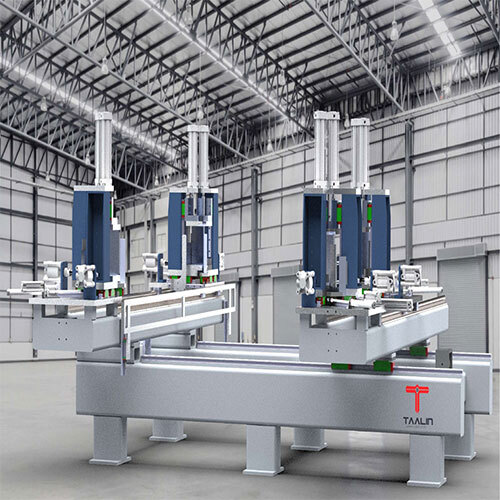

Manual Double Head Mitre Saw (Down-stroke) with 400mm dia., TCT saw blades, horizontal & vertical Pneumatic clamps, Profile middle support, max. cut length 3450mm.

Features and Functionality:

The SDA-16MManual Double Head Mitre Saw comes with the following features:

  Cuts PVC & Aluminium profile at +45/90/-45quick set sliding pins and intermediate degrees by means of manual setting of stopper.

  Profile Cutting Capacity at 90 degrees is 125x130mm in curvature orientation.

  Profile Cutting Capacity at 45 degrees Is 145x130mm in curvature orientation.

  The left head of the machine is fixed and the right head moves on the basis of bearing mounted on precise LM shafts.

  Moving head positioning by means of a pointer and measuring scale, the movement is carried out by hand pulling.

  Detachable dual roller support for profile to avoid inaccuracies due to profile sagging.

  Easily adjustable blade cutting speed.

  Ergonomic design for ease of use.

  Self-closing saw cover for work safety.

  Easily adjustable Vertical and horizontal pneumatic profile clamping system for the best fixation.

  Coolant spray mist system for cutting aluminium profiles.

  Hydro-pneumatic design for cutting aluminium profiles.

Technical Data:

  Saw Blade diameter 400 mm.

  Voltage 380-415v, 3~, 50 Hz.

  Motor Power 2x 1.5 Kw.

  Compressed air 7 bar.

  Servo pack 400 watt

  Dimensions (length, width, height) 3760 x 640 x 1570 mm,

  Weight 400 Kg.
