CNC Double Head Cutting Machine

Product Description

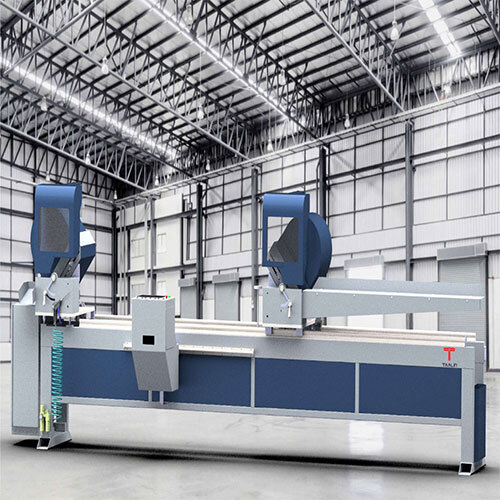

SDS 24AA CNC Double Head Variable Angle Saw (Upstroke&Frontal Combined) with 600mm dia., TCT saw blades, horizontal & vertical Pneumatic clamps, Hydro-pneumatic feed, Profile middle support, High precision head positioning by geared servo motor, Automatic servo-controlled angle change in any degreebetween 45-90 with the precision of Harmonic Gearbox. Windows IPC with Taalin Smart Saw software is equipped to handle many tasks including cutting optimisation.

Features and Functionality:

The SDS-24AADouble Head CNC Variable Angle Cutting Machine With 600 mm Saw comes with the following features:

Cuts PVC & Aluminium profile at 45 to 90 automatically with the help of servo motor and highly precise harmonic gears.

Very Large Profile Cutting Capacity at 90 degrees which is that of450x250mm in curvature orientation.

Very Large Profile Cutting Capacity at 45 degrees Is 450x180mm in curvature orientation.

The left head of the machine is fixed and the right head moves on the basis of bearing mounted on precise LM shafts.

precision positioning by means of planetary gear coupledwith servo motor with the help of rack & pinion driven transition system.

Windows IPC with Taalin Smart Saw Software works seamlessly to give many options including that of Bar Optimisation.

Software assisted cutting operations like minimum cut and extended cut for a range between 350mm to 6000mm, additionally cleat cut mode is available.

Hydro-pneumatic feeding with coolant mist spray system for cutting of aluminium sections.

2200 mm right head conveyor support along with automatically activated middle support for profile to avoid inaccuracies due to profile sagging.

Easily adjustable blade cutting speed.

Ergonomic design for ease of operation with additional option for easy troubleshooting via remote support over windows PC.

Self-closing protective hoods for work safety.

Easily adjustable Vertical and horizontal pneumatic profile clamping system for the best fixation.

Technical Data:

Saw Blade diameter 600 mm.

Voltage 380-415v, 3~, 50 Hz.

Motor Power 2x 3.5 Kw.

Compressed air 7 bar.

Servo pack 400 watt

Nidec Harmonic Gearbox

Dimensions (length, width, height) 6190 x 1620 x 1620 mm,

Weight 1500 Kg.

Optional:

Automatic Pneumatic End support for profiles during small size cutting.

Dust collector

Longer body frames for 5meter/6 meter cutting without software assistant.
